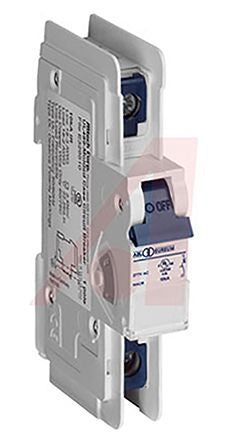

Altech 6A 1 Pole Thermal Magnetic Circuit Breaker, 277V ac UL [1C6UL]; 898-4723
by Altech
0₫
Mã kho: 8984723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 6A |
| Number of Poles | 1 |
| Voltage Rating | 277V ac |
| Series | UL |
| Overall Dimensions | 17.5 x 105.3 x 74.4mm |
| Overall Depth | 74.4mm |
| Tripping Mechanism | Magnetic |
| Tripping Characteristics | Type C |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Reset Actuator Type | Toggle Switch |
| Circuit Breaker Type | MCB |
| Rated AC Voltage | 277V |
| Special Features | Medium Magnetic Trip Point, Relatively Short Thermal Trip Delay |
| Break Time | Time Delayed |
| Terminal Contact Type | Screw |
| Application | Control Circuit, Lighting, Low Inrush Motors, Receptacles, Resistive Loads, Wiring Protection |
| Overall Length | 17.5mm |
| Mounting Style | DIN Rail Mount |
