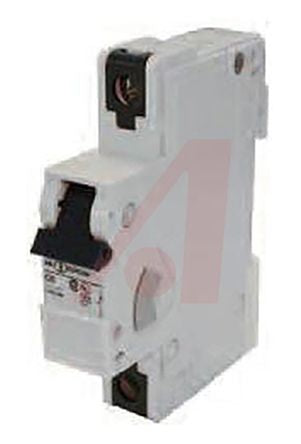

Altech 2A 1 Pole Thermal Magnetic Circuit Breaker, 42 V dc, 277 V ac V-EA [1C2UM]; 898-2638
by Altech
0₫
Mã kho: 8982638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 2A |
| Number of Poles | 1 |
| Voltage Rating | 42 V dc, 277 V ac |
| Series | V-EA |
| Reset Actuator Type | Toggle Switch |
| Overall Dimensions | 17.5 x 89.3 x 74.4mm |
| Overall Depth | 74.4mm |
| Tripping Mechanism | Thermal-Magnetic |
| Tripping Characteristics | Type C |
| Application | Appliances, Business Equipment, Control Circuit, Lighting, Low Inrush Motors, Wiring Protection |
| Overall Length | 17.5mm |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Mounting Style | DIN Rail Mount |
| Rated DC Voltage | 42V |
| Rated AC Voltage | 277V |
| Special Features | Medium Magnetic Trip Point, Relatively Long Thermal Trip Delay |
| Break Time | Time Delayed |
| Circuit Breaker Type | MCB |
| Terminal Contact Type | Screw |
