![Altech 1BU1R 8982474](http://nguyenxuong.com/cdn/shop/products/R8982474-01_242x445.jpg?v=1594120309)

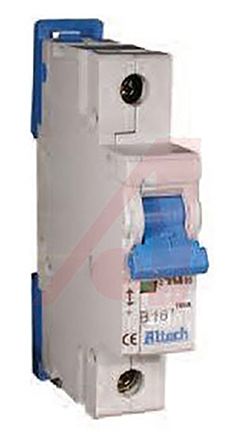

Altech 1A 1 Pole Thermal Magnetic Circuit Breaker, 48 V dc, 277 V ac R [1BU1R]; 898-2474
by Altech
0₫
Mã kho: 8982474
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Current Rating | 1A |
Number of Poles | 1 |
Voltage Rating | 48 V dc, 277 V ac |
Series | R |
Overall Depth | 83.5mm |
Tripping Mechanism | Thermal-Magnetic |
Tripping Characteristics | Type B |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Overall Length | 17.5mm |
Overall Dimensions | 17.5 x 96.1 x 83.5mm |
Reset Actuator Type | Toggle Switch |
Circuit Breaker Type | MCB |
Rated DC Voltage | 48V |
Special Features | Positive Trip Indicator, Relatively Long Thermal Trip Delay But Low Magnetic Trip Point |
Break Time | Time Delayed |
Mounting Style | DIN Rail Mount |
Application | Appliances, Business Equipment, Control Circuit, Lighting, Power Supplies, Sensitive Electronics, Wiring Protection |
Terminal Contact Type | Screw |
Rated AC Voltage | 277V |
