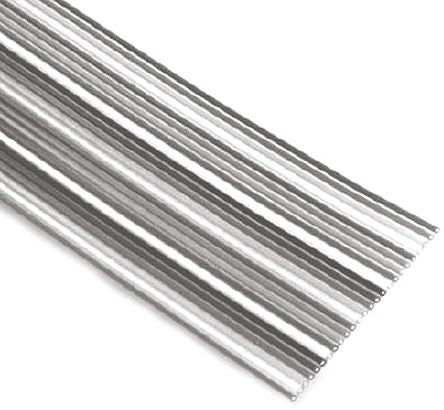

10 WAY COLOUR 1.27MM RIBBON CABLE 30M [3811/10-100]; 190-2068
by 3M
0₫
Mã kho: 1902068
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 10 |
| Pitch | 1.27mm |
| American Wire Gauge | 26 |
| Width | 12.7 mm |
| Cable Shape | Ribbon |
| Sheath Colour | Multicoloured |
| Voltage Rating | 300 V |
| Screened/Unscreened | Unscreened |
| Conductor Strand Type | Stranded |
| Number of Strands | 7 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +105°C |
| Core Strands | 12601 |
| Characteristic Impedance | 95 Ω |
| Size of Strands | 34 |
| Series | 3811 |
| Capacitance | 48.6 pF/m |
