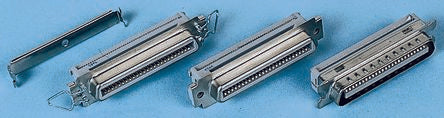

3M Female 24 Pin Right Angle Cable Mount SCSI Connector 2.16mm Pitch, IDT [3549-2002]; 323-8135
by 3M
0₫
Mã kho: 3238135
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| Number of Contacts | 24 |
| Body Orientation | Right Angle |
| Mounting Type | Cable Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Housing Material | Steel |
| Pitch | 2.16mm |
| Current Rating | 1A |
| Termination Method | IDT |
| Length | 55.1mm |
| Width | 20.8mm |
| Maximum Operating Temperature | +105°C |
| Depth | 20.57mm |
| Minimum Operating Temperature | -55°C |
