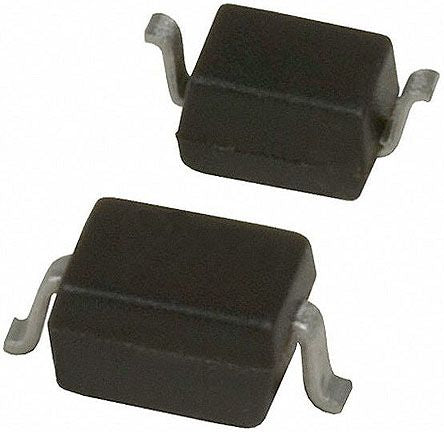

Infineon BB535E7904HTSA1 Varactor, 1.9pF min, 8.2:1 Tuning Ratio, 30V, 2-Pin SOD-323 [BB535E7904HTSA1]; 145-9549
by Infineon
0₫
Mã kho: 1459549
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Application | UHF-TV Tuner |
| Number of Elements per Chip | 1 |
| Minimum Diode Capacitance | 1.9pF |
| Maximum Reverse Voltage | 30V |
| Minimum Tuning Ratio | 8.2 |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Pin Count | 2 |
| Tuning Ratio Test Condition | 1 → 28V |
| Dimensions | 1.7 x 1.25 x 1mm |
| Height | 1mm |
| Length | 1.7mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 1.25mm |
