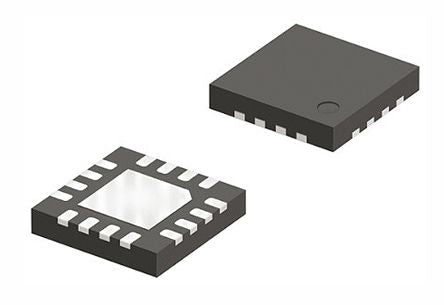

Texas Instruments TPS2540RTET, USB Power Switch, High Side, 120mΩ, 4.5 V min. 16-Pin, WQFN [TPS2540RTET]; 168-4137
0₫
Mã kho: 1684137
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Type | High Side |
| Number of Outputs | 1 |
| Switch On Resistance | 120mΩ |
| Maximum Power Dissipation | Internally Limited |
| Mounting Type | Surface Mount |
| Package Type | WQFN |
| Pin Count | 16 |
| Current Limit | 2.8A |
| Dimensions | 3.15 x 3.15 x 0.75mm |
| Length | 3.15mm |
| Width | 3.15mm |
| Height | 0.75mm |
| Maximum Input Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Output Current | 0A |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 4.5 V |
