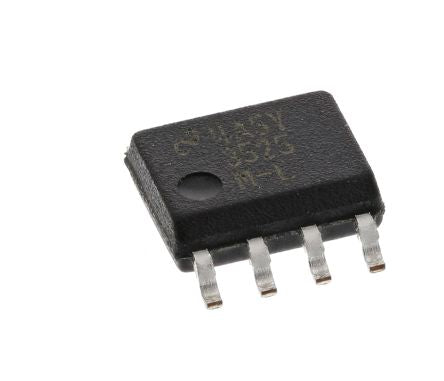

Texas Instruments LM3525M-L/NOPB, Triple USB Power Switch, High Side, 80mΩ, 2.7 V min. 8-Pin, SOIC [LM3525M-L/NOPB]; 460-758
0₫
Mã kho: 460758
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Type | High Side |
| Number of Outputs | 3 |
| Switch On Resistance | 80mΩ |
| Maximum Power Dissipation | 700 mW |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Current Limit | 2.25A |
| Dimensions | 4.9 x 3.9 x 1.45mm |
| Length | 4.9mm |
| Width | 3.9mm |
| Height | 1.45mm |
| Maximum Input Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Input Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
