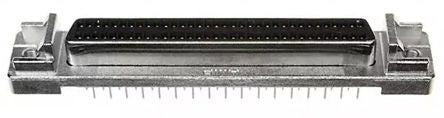

TE Connectivity Amplimite .050 III Series, 68 Way Through Hole PCB D-sub Connector Socket, 2.54mm Pitch [5749069-7]; 165-0664
0₫
Mã kho: 1650664
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 68 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.54mm |
| Mounting Hardware | Rails and Latchblocks |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 63.88mm |
| Width | 8.92mm |
| Depth | 10.31mm |
| Dimensions | 63.88 x 8.92 x 10.31mm |
| Minimum Operating Temperature | -55.0°C |
| Series | Amplimite .050 III |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Palladium Nickel |
| Maximum Operating Temperature | +105°C |
