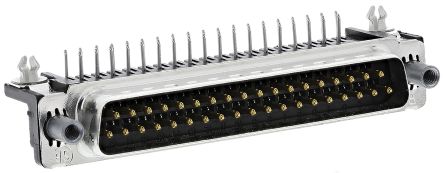

TE Connectivity AMPLIMITE HD-20 Series, 37 Way Right Angle Through Hole PCB D-sub Connector Plug, 2.75mm Pitch [5747843-6]; 446-5237
0₫
Mã kho: 4465237
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 37 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.75mm |
| Termination Method | Solder |
| Mounting Hardware | Boardlocks, 4-40 UNC Female Screwlocks |
| Housing Material | Thermoplastic |
| Length | 69.32mm |
| Width | 12.55mm |
| Depth | 18.8mm |
| Dimensions | 69.32 x 12.55 x 18.8mm |
| Contact Material | Brass |
| Series | Amplimite HD-20 |
| Contact Plating | Gold over Nickel |
