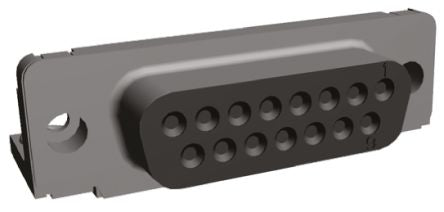

TE Connectivity AMPLIMITE HD-20 Series, 15 Way Right Angle Through Hole PCB D-sub Connector Socket, 7.06mm Pitch [5745782-4]; 756-1088
0₫
Mã kho: 7561088
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 7.06mm |
| Mounting Hardware | Threaded Insert, 4-40 UNC |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Voltage Rating | 250 V ac |
| Length | 1.541in |
| Width | 0.494in |
| Depth | 0.74in |
| Dimensions | 1.541 x 0.494 x 0.74in |
| Series | Amplimite HD-20 |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +105°C |
| Contact Plating | Gold over Nickel |
| Contact Material | Phosphor Bronze |
