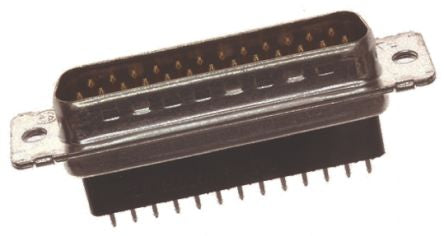

TE Connectivity AMPLIMITE HD-20 Series, 50 Way Through Hole PCB D-sub Connector Plug, 2.768mm Pitch [5745414-1]; 798-1189
0₫
Mã kho: 7981189
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 50 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.768mm |
| Mounting Hardware | 3.05 mm mounting holes |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Voltage Rating | 250.0 V |
| Length | 2.635in |
| Width | 0.689in |
| Depth | 0.605in |
| Dimensions | 2.635 x 0.689 x 0.605in |
| Contact Size | 20 |
| Series | Amplimite HD-20 |
| Contact Plating | Gold |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass |
| Minimum Operating Temperature | -55.0°C |
