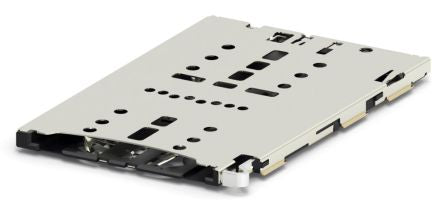

TE Connectivity 20 Way MicroSD, SIM Memory Card Connector With Solder Termination [2290741-1]; 136-0378
0₫
Mã kho: 1360378
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | MicroSD, SIM |
| Gender | Male |
| Number of Contacts | 20 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Stainless Steel |
| Length | 18.3mm |
| Width | 27.95mm |
| Depth | 1.32mm |
| Dimensions | 18.3 x 27.95 x 1.32mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
