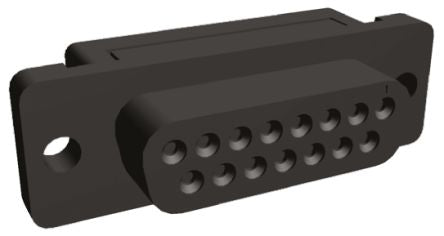

TE Connectivity AMPLIMITE HDF-20 Series 1.27mm Pitch 15 Way IDC D-Sub Ribbon Cable Connector, Socket [1658614-3]; 409-3258
0₫
Mã kho: 4093258
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Cable Mount |
| Pitch | 1.27mm |
| Termination Method | IDC |
| Current Rating | 1.25A |
| Housing Material | Thermoplastic |
| Voltage Rating | 250 V ac |
| Length | 39.14mm |
| Width | 12.59mm |
| Depth | 18.61mm |
| Dimensions | 39.14 x 12.59 x 18.61mm |
| Series | Amplimite HDF-20 |
| Contact Material | Phosphor Bronze |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +105°C |
