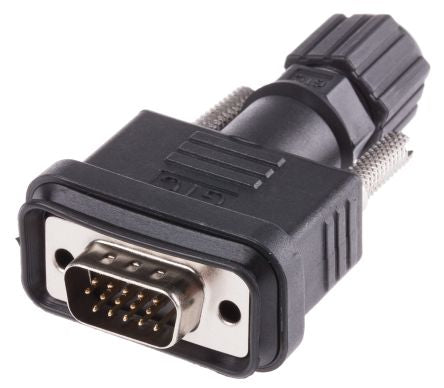

RS PRO GTC Sealed Series Cable Mount, 15 Pin Waterproof D-Sub D-sub Connector Plug, Shell Size E; 122-3046
by RS PRO
0₫
Mã kho: 1223046
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| D Connector Type | Waterproof D-Sub |
| D-Sub Shell Size | E |
| Termination Method | Solder |
| Current Rating | 5A |
| Housing Material | PBT |
| Voltage Rating | 1 kV ac |
| Length | 40mm |
| Width | 21mm |
| Depth | 67.5mm |
| Dimensions | 40 x 21 x 67.5mm |
| Contact Plating | Gold |
| Maximum Operating Temperature | +80°C |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -40°C |
| Series | GTC Sealed |
