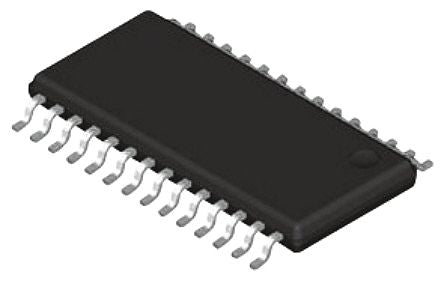

NXP SC16IS762IPW,112 Dual UART IrDA, UART 5Mbit/s, 2.5 V, 3.3 V, 28-Pin, TSSOP [SC16IS762IPW,112]; 124-2422
by NXP
0₫
Mã kho: 1242422
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Channels per Chip | 2 |
| Standard Supported | IrDA, UART |
| Maximum Data Rate | 5Mbit/s |
| Transmitter and Receiver FIFO Counter | Yes |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 2.5 V, 3.3 V |
| Dimensions | 9.8 x 4.5 x 0.95mm |
| Length | 9.8mm |
| Width | 4.5mm |
| Height | 0.95mm |
| Maximum Operating Temperature | +95 °C |
| Minimum Operating Temperature | -40 °C |
