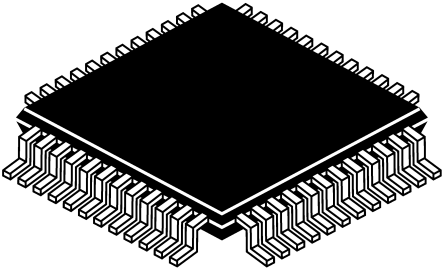

EXAR XR16C2850CM-F Dual UART IrDA 6.25Mbit/s, 2.97 → 5.5 V, 48-Pin, TQFP [XR16C2850CM-F]; 686-5963
by EXAR
0₫
Mã kho: 6865963
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Channels per Chip | 2 |
Standard Supported | IrDA |
Transmit FIFO | 128B |
Receive FIFO | 128B |
Maximum Data Rate | 6.25Mbit/s |
Transmitter and Receiver FIFO Counter | Yes |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 48 |
Typical Operating Supply Voltage | 2.97 → 5.5 V |
Dimensions | 7.1 x 7.1 x 1.05mm |
Length | 7.1mm |
Width | 7.1mm |
Height | 1.05mm |
Minimum Operating Temperature | 0 °C |
Maximum Operating Temperature | +70 °C |
