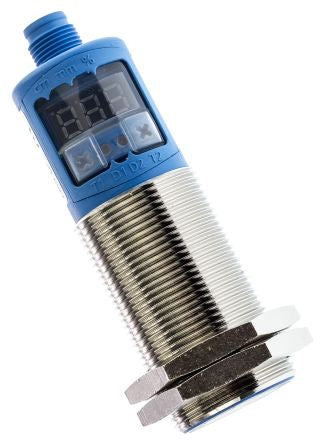

Sick Ultrasonic Sensor Barrel M30 x 1.5, 200 → 1300 mm, PNP, 5-Pin M12 Connector IP67 [UM30-213111]; 700-2858
by Sick
0₫
Mã kho: 7002858
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 200 → 1300 mm |
| Output Type | PNP-NO/NC |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 200kHz |
| Diameter | 30 mm |
| Maximum DC Voltage | 30V |
| Supply Voltage | 9 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Brass |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 6 Hz |
| Minimum Operating Temperature | -25°C |
| Response Time | 110 ms |
| Switching Current | 200 mA |
| Dimensions | 84 x 30 mm |
| Length | 84mm |
