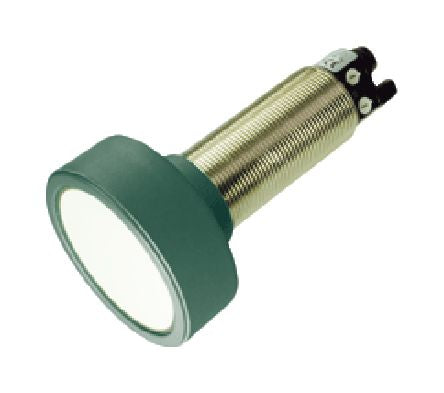

Pepperl + Fuchs Ultrasonic Sensor Barrel M30 x 1.5, 350 → 6000 mm, NO, PNP, 5-Pin M12 Connector IP65 [UC6000-30GM70-2E2R2-V15]; 891-9422
0₫
Mã kho: 8919422
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Detection Range | 350 → 6000 mm |
Output Type | PNP-2NO/NC |
Body Style | Barrel |
Thread Size | M30 x 1.5 |
Transducer Frequency | 80kHz |
Diameter | 65 mm |
Maximum DC Voltage | 30V |
Supply Voltage | 12 → 30 V dc |
Terminal Type | M12 - 5 Pin |
IP Rating | IP65 |
Housing Material | Nickel Plated Brass |
Short Circuit Overload Protection | Yes |
Length | 96.6mm |
Switching Current | 150 mA |
Switching Frequency | ≤1 Hz |
Standards Met | CCC, CCSAus Listed, CE, CULus Listed, EN, IEC |
Minimum Operating Temperature | -25°C |
Response Time | ≤275 ms |
Maximum Operating Temperature | +70°C |
