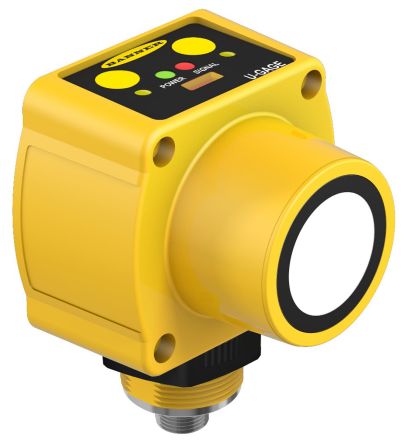

Banner Ultrasonic Sensor Block, 200 → 8000 mm, Analogue, 5-Pin Euro Connector IP67 [QT50ULBQ6]; 847-9637
by Banner
0₫
Mã kho: 8479637
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 200 → 8000 mm |
| Output Type | Analogue |
| Body Style | Block |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP67 |
| Housing Material | ABS/Polycarbonate |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 75 kHz |
| Width | 100.2mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Depth | 67.4mm |
| Length | 74mm |
| Dimensions | 74 x 100.2 x 67.4 mm |
| Switching Current | 20 mA |
