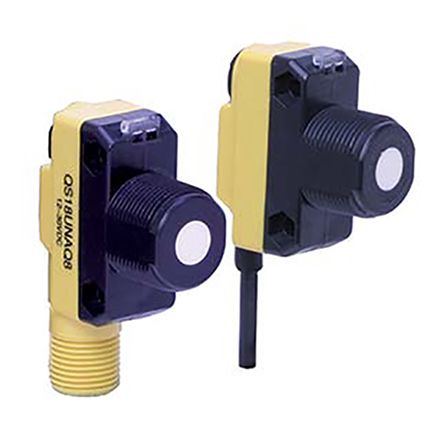

Banner Ultrasonic Sensor Block, 50 → 500 mm, PNP, Cable IP67 [QS18UPA]; 848-7161
by Banner
0₫
Mã kho: 8487161
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 50 → 500 mm |
| Output Type | PNP-NO |
| Body Style | Block |
| Maximum DC Voltage | 30V |
| Supply Voltage | 12 → 30 V dc |
| Terminal Type | Cable |
| IP Rating | IP67 |
| Housing Material | ABS |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Length | 33.5mm |
| Depth | 35mm |
| Switching Frequency | 300 kHz |
| Dimensions | 33.5 x 15 x 35 mm |
| Switching Current | 25 mA |
| Width | 15mm |
