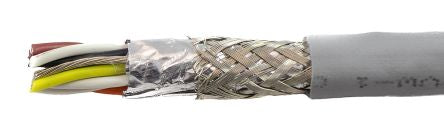

Alpha Wire 5 Pair Foil and Braid Multipair Industrial Cable 0.24 mm² [78325 SL005]; 136-8502
by Alpha Wire
0₫
Mã kho: 1368502
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Pairs | 5 |
| Cross Sectional Area | 0.24 mm² |
| Cable Type | Twisted Pair |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 6.05mm |
| Shield Type | Foil and Braid |
| Outer Sheath Material | MPPE |
| Sheath Colour | Grey |
| Characteristic Impedance | 75 Ω |
| Core Strands | 19/36 |
| Voltage Rating | 300 V |
| Length | 30m |
| Standards Met | CE, CSA Certified, CSA I A/B FT1, UL AWM 21460, UL Recognised, UL VW-1 |
| Series | EcoCable Mini |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
