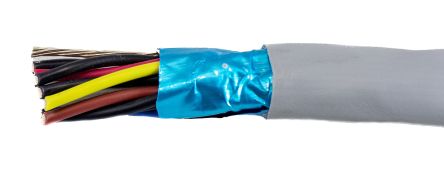

Alpha Wire 6 Pair Screened Multipair Industrial Cable 0.24 mm²(CE, CSA, UL) Grey 30m EcoCable mini Series [78176 SL005]; 136-8498
by Alpha Wire
0₫
Mã kho: 1368498
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Pairs | 6 |
| Cross Sectional Area | 0.24 mm² |
| Cable Type | Twisted Pair |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 5.87mm |
| Shield Type | Foil |
| Outer Sheath Material | MPPE |
| Sheath Colour | Grey |
| Characteristic Impedance | 82 Ω |
| Screened/Unscreened | Screened |
| Core Strands | 19/36 |
| Voltage Rating | 300 V |
| Series | EcoCable Mini |
| Standards Met | CE, CSA, UL |
| Fire Behaviour | Halogen Free |
| Length | 30m |
