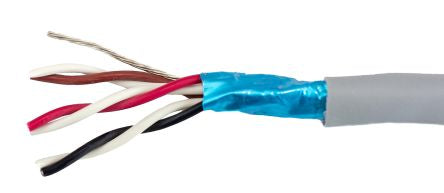

Alpha Wire 3 Pair Screened Multipair Industrial Cable 0.09 mm²(CE, CSA, UL) Grey 30m EcoCable mini Series [78153 SL005]; 136-8491
by Alpha Wire
0₫
Mã kho: 1368491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Pairs | 3 |
Cross Sectional Area | 0.09 mm² |
Cable Type | Twisted Pair |
American Wire Gauge | 28 AWG |
Outer Diameter | 3.66mm |
Shield Type | Foil |
Outer Sheath Material | MPPE |
Sheath Colour | Grey |
Characteristic Impedance | 87 Ω |
Core Strands | 19/40 |
Screened/Unscreened | Screened |
Voltage Rating | 300 V |
Series | EcoCable Mini |
Standards Met | CE, CSA, UL |
Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
Length | 30m |
