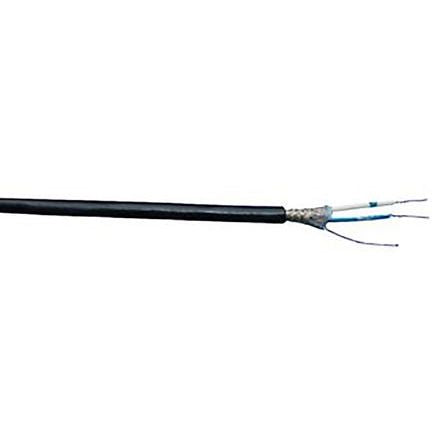

Alpha Wire 1 Pair Foil and Braid Multipair Industrial Cable 0.456 mm²(CE) Black 305m Alpha Essentials Series [6453 BK001]; 749-1620
by Alpha Wire
0₫
Mã kho: 7491620
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Pairs | 1 |
| Cross Sectional Area | 0.456 mm² |
| Cable Type | Twisted Pair |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 7.21mm |
| Shield Type | Foil and Braid |
| Outer Sheath Material | PVC |
| Sheath Colour | Black |
| Characteristic Impedance | 120 Ω |
| Screened/Unscreened | Screened |
| Core Strands | 44042 |
| Voltage Rating | 300 V |
| Series | Alpha Essentials |
| Standards Met | CE |
| Length | 305m |
| Fire Behaviour | Fire Resistant |
