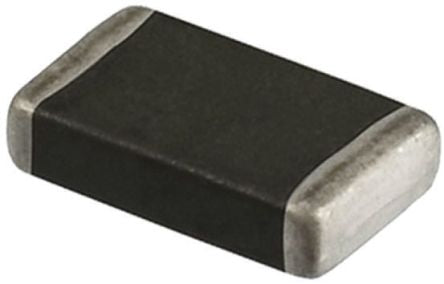

Wurth Elektronik 82306120029, TVS Diode, 2-Pin 0603 (1608M) [82306120029]; 162-3800
0₫
Mã kho: 1623800
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Maximum Clamping Voltage | 30V |
| Mounting Type | Surface Mount |
| Package Type | 0603 (1608M) |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 2 |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 1.6 x 0.8 x 0.9mm |
| Length | 1.6mm |
| Test Current | 1A |
| Maximum Reverse Leakage Current | 10nA |
| Height | 0.9mm |
| Width | 0.8mm |
