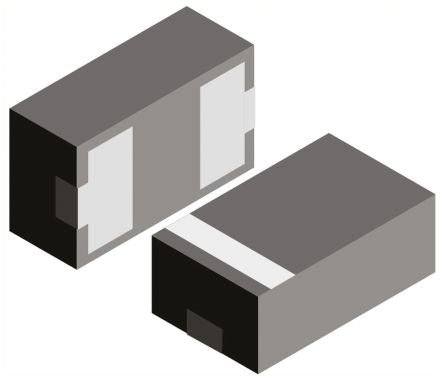

Vishay VCUT0505B-HD1-GS08, Dual Bi-Directional ESD Protection Diode, 56W, 2-Pin LLP1006 [VCUT0505B-HD1-GS08]; 818-4406
by Vishay
0₫
Mã kho: 8184406
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 12V |
| Minimum Breakdown Voltage | 7V |
| Mounting Type | Surface Mount |
| Package Type | LLP1006 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 56W |
| Maximum Peak Pulse Current | 3.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Capacitance | 20pF |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 1.05 x 0.65 x 0.4mm |
| Test Current | 1mA |
| Width | 0.65mm |
| Height | 0.4mm |
| Length | 1.05mm |
