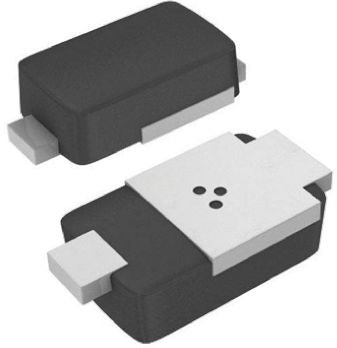

Vishay SMP28A-M3/84A, Uni-Directional TVS Diode, 400W, 2-Pin SMP [SMP28A-M3/84A]; 170-2215
by Vishay
0₫
Mã kho: 1702215
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 45.4V |
Minimum Breakdown Voltage | 31.1V |
Mounting Type | Surface Mount |
Package Type | SMP |
Maximum Reverse Stand-off Voltage | 28V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 400W |
Maximum Peak Pulse Current | 8.8A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Test Current | 1mA |
Length | 3.61mm |
Height | 1.15mm |
Dimensions | 3.61 x 2.18 x 1.15mm |
Width | 2.18mm |
Maximum Reverse Leakage Current | 1µA |
