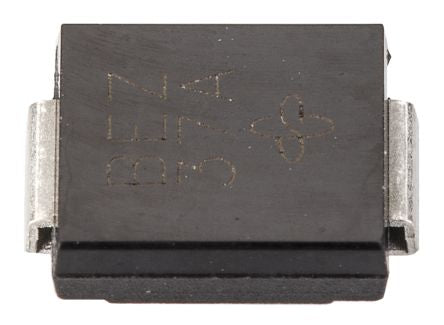

Vishay SMCJ24CA-E3/57T, Bi-Directional TVS Diode, 1500W, 2-Pin SMC [SMCJ24CA-E3/57T]; 518-0763
by Vishay
0₫
Mã kho: 5180763
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 38.9V |
| Minimum Breakdown Voltage | 26.7V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 24V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 38.6A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 6.22mm |
| Length | 7.11mm |
| Test Current | 1mA |
| Dimensions | 7.11 x 6.22 x 2.42mm |
| Maximum Reverse Leakage Current | 1µA |
| Height | 2.42mm |
