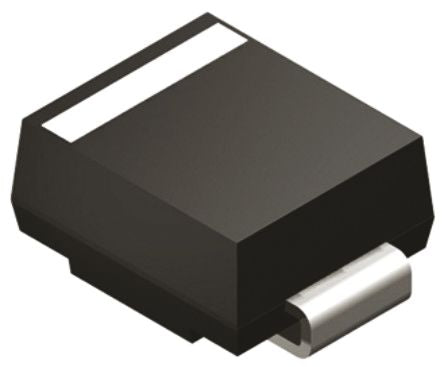

Vishay SMBJ188A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA [SMBJ188A-E3/52]; 165-6128
by Vishay
0₫
Mã kho: 1656128
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 328V |
| Minimum Breakdown Voltage | 209V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 188V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 2A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.57 x 3.94 x 2.24mm |
| Height | 2.24mm |
| Width | 3.94mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Length | 4.57mm |
