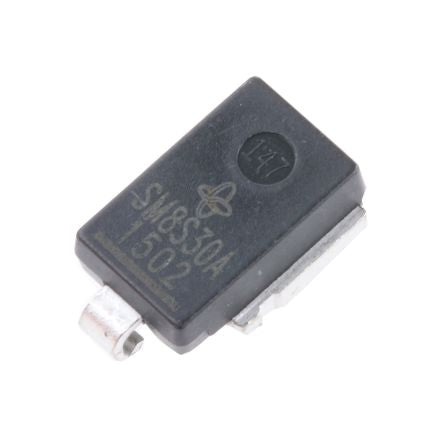

Vishay SM8S30AHE3_A/I, Uni-Directional TVS Diode, 6600W, 2-Pin DO-218AB [SM8S30AHE3_A/I]; 699-8001
by Vishay
0₫
Mã kho: 6998001
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 48.4V |
| Minimum Breakdown Voltage | 33.3V |
| Mounting Type | Surface Mount |
| Package Type | DO-218AB |
| Maximum Reverse Stand-off Voltage | 30V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 6600W |
| Maximum Peak Pulse Current | 136A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Maximum Reverse Leakage Current | 150µA |
| Test Current | 5mA |
| Width | 8.7mm |
| Length | 13.7mm |
| Height | 5mm |
| Dimensions | 13.7 x 8.7 x 5mm |
