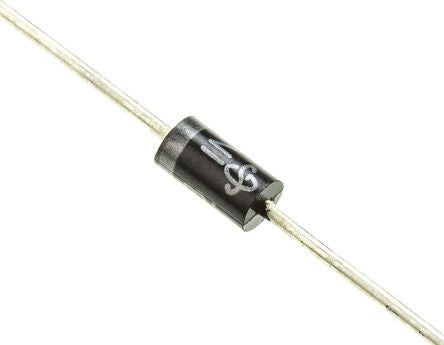

Vishay BZW04-6V4B-E3/54, Bi-Directional TVS Diode, 400W, 2-Pin DO-204AL [BZW04-6V4B-E3/54]; 902-6679
by Vishay
0₫
Mã kho: 9026679
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 11.3V |
| Minimum Breakdown Voltage | 7.13V |
| Mounting Type | Through Hole |
| Package Type | DO-204AL |
| Maximum Reverse Stand-off Voltage | 6.4V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 35.4A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Test Current | 10mA |
| Dimensions | 2.7 (Dia.) x 5.2mm |
| Diameter | 2.7mm |
| Length | 5.2mm |
| Maximum Reverse Leakage Current | 500µA |
| Surge Current Rating | 40A |
