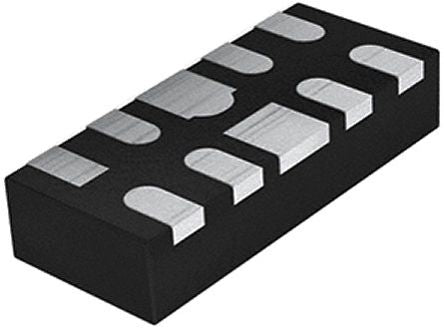

Texas Instruments TPD4S010DQAR, Quad Uni-Directional ESD Protection Array, 25W, 10-Pin USON [TPD4S010DQAR]; 812-0219
0₫
Mã kho: 8120219
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage | 9V |
| Mounting Type | Surface Mount |
| Package Type | USON |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 10 |
| Peak Pulse Power Dissipation | 25W |
| Maximum Peak Pulse Current | 2.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 0.45mm |
| Length | 2.6mm |
| Dimensions | 2.6 x 1.1 x 0.45mm |
| Test Current | 1mA |
| Width | 1.1mm |
