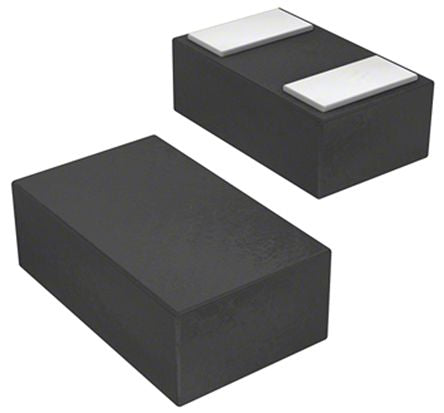

Texas Instruments TPD1E10B06DPYR, Bi-Directional ESD Protection Diode, 90W, 2-Pin X2SON [TPD1E10B06DPYR]; 812-0174
0₫
Mã kho: 8120174
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 14V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | X2SON |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 90W |
| Maximum Peak Pulse Current | 6A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.1mm |
| Width | 0.7mm |
| Test Current | 1mA |
| Dimensions | 1.1 x 0.7 x 0.35mm |
| Height | 0.35mm |
| Maximum Reverse Leakage Current | 100nA |
