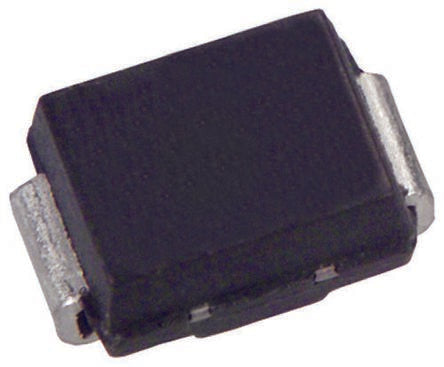

Taiwan Semi SMAJ60A R3, Uni-Directional TVS Diode, 2-Pin DO-214AC [SMAJ60A R3]; 169-9074
0₫
Mã kho: 1699074
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 96.8V |
| Minimum Breakdown Voltage | 66.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 60V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 4.1A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 2.3mm |
| Width | 2.83mm |
| Test Current | 1mA |
| Dimensions | 4.6 x 2.83 x 2.3mm |
| Maximum Reverse Leakage Current | 5µA |
| Length | 4.6mm |
