![Taiwan Semiconductor P6SMB39CA R5 1699035](http://nguyenxuong.com/cdn/shop/products/R245621-01_65143ac7-0473-435b-8ebb-c5ae77c229ae_329x262.jpg?v=1594315787)

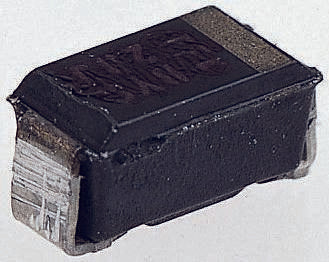

Taiwan Semi P6SMB39CA R5, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA [P6SMB39CA R5]; 169-9035
0₫
Mã kho: 1699035
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 53.9V |
Minimum Breakdown Voltage | 37.1V |
Mounting Type | Surface Mount |
Package Type | DO-214AA (SMB) |
Maximum Reverse Stand-off Voltage | 33.3V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 600W |
Maximum Peak Pulse Current | 11.6A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
Length | 4.75mm |
Dimensions | 4.75 x 3.73 x 2.41mm |
Height | 2.41mm |
Width | 3.73mm |
Test Current | 1mA |
Maximum Reverse Leakage Current | 5µA |
