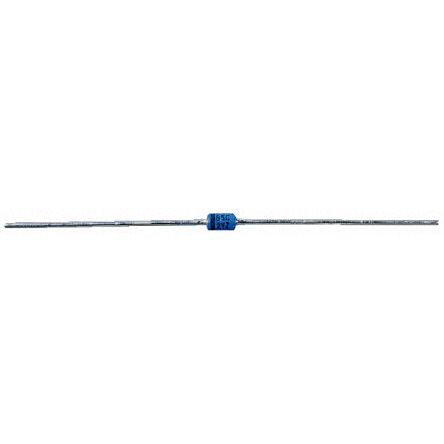

Taiwan Semi BZW04-20 R0, Uni-Directional TVS Diode, 2-Pin DO-41 [BZW04-20 R0]; 169-9087
0₫
Mã kho: 1699087
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 33.2V |
| Minimum Breakdown Voltage | 22.8V |
| Mounting Type | Through Hole |
| Package Type | DO-41 |
| Maximum Reverse Stand-off Voltage | 20.5V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 12A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 5.2mm |
| Test Current | 1mA |
| Height | 2.7mm |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 5.2 x 2.7 x 2.7mm |
| Width | 2.7mm |
