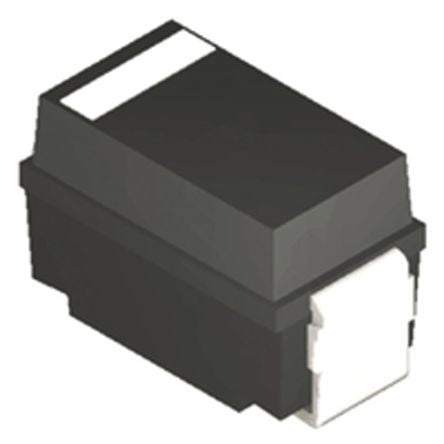

STMicroelectronics SMP30-62, Bi-Directional TVS Diode, 2-Pin DO-214AC [SMP30-62]; 165-6599
0₫
Mã kho: 1656599
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Mounting Type | Surface Mount |
Package Type | DO-214AC (SMA) |
Maximum Reverse Stand-off Voltage | 62V |
Pin Count | 2 |
Maximum Peak Pulse Current | 30A |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Length | 4.6mm |
Width | 2.9mm |
Dimensions | 4.6 x 2.9 x 2.45mm |
Maximum Reverse Leakage Current | 5µA |
Height | 2.45mm |
