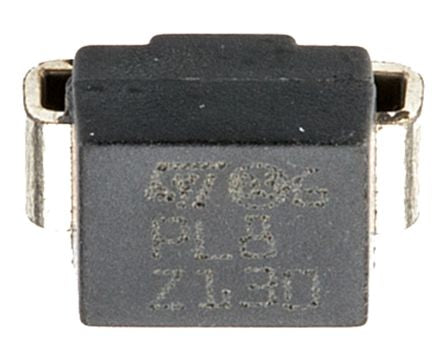

STMicroelectronics SMP100LC-8, Bi-Directional TVS Diode, 2-Pin DO-214AA [SMP100LC-8]; 102-3579
0₫
Mã kho: 1023579
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage | 8V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 6V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 100A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Capacitance | 75pF |
| Maximum Reverse Leakage Current | 2µA |
| Surge Current Rating | 24A |
| Height | 2.45mm |
| Width | 3.95mm |
| Test Current | 5µA |
| Length | 4.6mm |
| Dimensions | 4.6 x 3.95 x 2.45mm |
