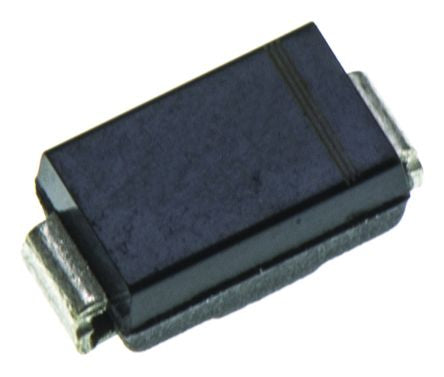

STMicroelectronics SMA6J15A-TR, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AC [SMA6J15A-TR]; 880-5370
0₫
Mã kho: 8805370
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 27.7V |
| Minimum Breakdown Voltage | 16.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 123A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Test Current | 1mA |
| Length | 4.6mm |
| Dimensions | 4.6 x 2.9 x 2.03mm |
| Height | 2.03mm |
| Width | 2.9mm |
| Surge Current Rating | 60A |
| Maximum Reverse Leakage Current | 1µA |
