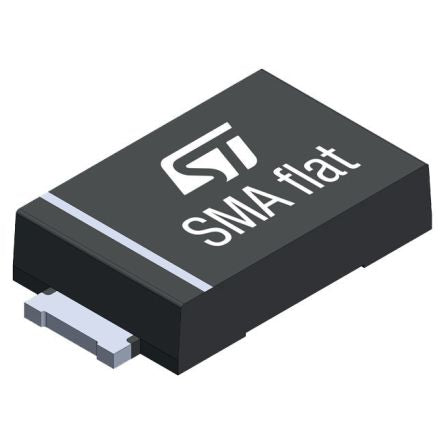

SMA6F33AY, TVS Diodes [SMA6F33AY]; 192-4750
0₫
Mã kho: 1924750
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 53.3 V, 69.7 V |
| Minimum Breakdown Voltage | 36.7V |
| Mounting Type | Surface Mount |
| Package Type | SMA Flat |
| Maximum Reverse Stand-off Voltage | 33V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 11.8 A, 57 A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| ESD Voltage | 30kV |
| Working Voltage | 33V |
| Automotive Standard | AEC-Q101 |
| Capacitance | 330pF |
| Length | 4.6mm |
| Dimensions | 4.6 x 2.9 x 1.05mm |
| Test Current | 1mA |
| Height | 1.05mm |
| Width | 2.9mm |
| Maximum Reverse Leakage Current | 1µA |
