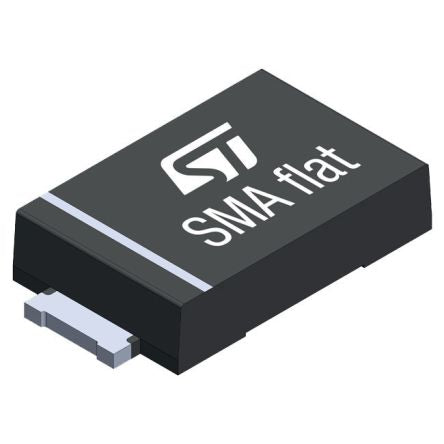

SMA6F26AY, TVS Diodes [SMA6F26AY]; 192-4742
0₫
Mã kho: 1924742
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 42.1 V, 53.5 V |
Minimum Breakdown Voltage | 28.9V |
Mounting Type | Surface Mount |
Package Type | SMA Flat |
Maximum Reverse Stand-off Voltage | 26V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 600W |
Maximum Peak Pulse Current | 14.9 A, 75 A |
ESD Protection | Yes |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Length | 4.6mm |
Capacitance | 330pF |
Automotive Standard | AEC-Q101 |
ESD Voltage | 30kV |
Working Voltage | 26V |
Dimensions | 4.6 x 2.9 x 1.05mm |
Maximum Reverse Leakage Current | 1µA |
Test Current | 1mA |
Width | 2.9mm |
Height | 1.05mm |
