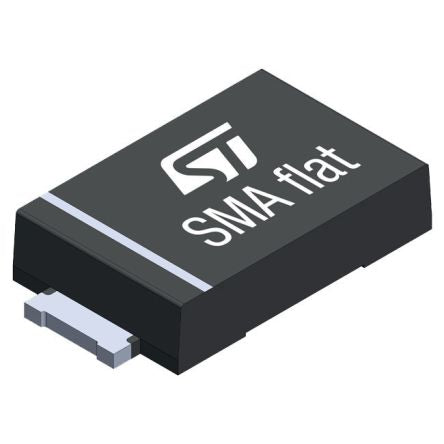

SMA4F15AY, TVS Diodes [SMA4F15AY]; 192-3846
0₫
Mã kho: 1923846
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 24.4 V, 32.5 V |
| Minimum Breakdown Voltage | 16.7V |
| Mounting Type | Surface Mount |
| Package Type | SMA Flat |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 16.4 A, 71 A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| ESD Voltage | 30kV |
| Dimensions | 4.6 x 2.9 x 1.05mm |
| Working Voltage | 15V |
| Automotive Standard | AEC-Q101 |
| Length | 4.6mm |
| Capacitance | 330pF |
| Test Current | 1mA |
| Height | 1.05mm |
| Width | 2.9mm |
| Maximum Reverse Leakage Current | 1µA |
