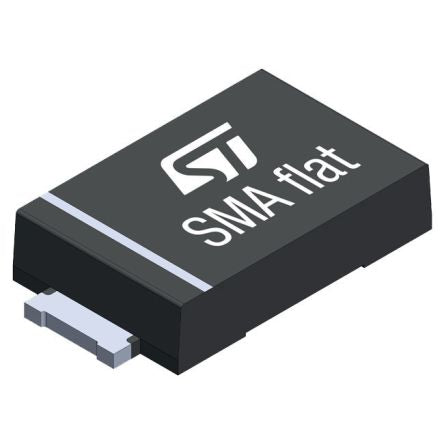

SMA4F10AY, TVS Diodes [SMA4F10AY]; 192-4313
0₫
Mã kho: 1924313
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 17 V, 21.7 V |
| Minimum Breakdown Voltage | 11.1V |
| Mounting Type | Surface Mount |
| Package Type | SMA Flat |
| Maximum Reverse Stand-off Voltage | 10V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 23.5 A, 106 A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| ESD Voltage | 30kV |
| Dimensions | 4.6 x 2.9 x 1.05mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Width | 2.9mm |
| Height | 1.05mm |
| Working Voltage | 10V |
| Length | 4.6mm |
| Capacitance | 330pF |
| Automotive Standard | AEC-Q101 |
