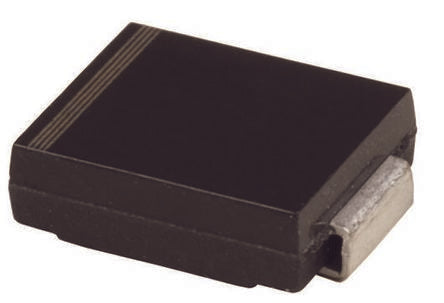

STMicroelectronics SM5908, Uni-Directional TVS Diode, 1500W, 2-Pin SMC [SM5908]; 714-7064
0₫
Mã kho: 7147064
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 8.5V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 120A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Height | 2.45mm |
| Width | 6.25mm |
| Test Current | 1mA |
| Length | 7.15mm |
| Dimensions | 7.15 x 6.25 x 2.45mm |
| Maximum Reverse Leakage Current | 300µA |
