![STMicroelectronics SM4T6V7CAY 7957287](http://nguyenxuong.com/cdn/shop/products/SMA-02_bdd0b744-249d-4c22-9616-8172e3725008_311x312.jpg?v=1594138278)

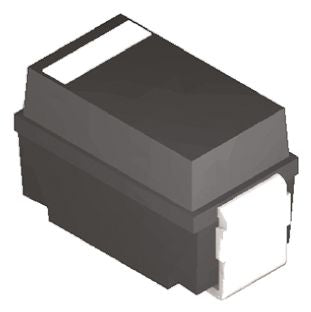

STMicroelectronics SM4T6V7CAY, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC [SM4T6V7CAY]; 795-7287
0₫
Mã kho: 7957287
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Direction Type | Bi-Directional |
Maximum Clamping Voltage | 13.4V |
Minimum Breakdown Voltage | 6.4V |
Mounting Type | Surface Mount |
Package Type | DO-214AC (SMA) |
Maximum Reverse Stand-off Voltage | 5V |
Pin Count | 2 |
Peak Pulse Power Dissipation | 400W |
Maximum Peak Pulse Current | 174A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Width | 2.9mm |
Dimensions | 4.6 x 2.9 x 2.45mm |
Height | 2.45mm |
Automotive Standard | AEC-Q101 |
Test Current | 10mA |
Length | 4.6mm |
Maximum Reverse Leakage Current | 50µA |
