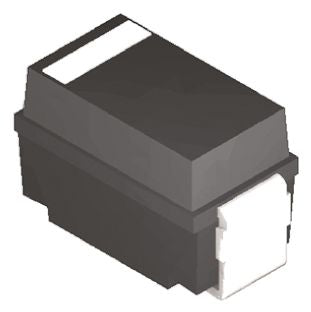

STMicroelectronics SM4T10CAY, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC [SM4T10CAY]; 795-7341
0₫
Mã kho: 7957341
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 19.5V |
| Minimum Breakdown Voltage | 9.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 8.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 124A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.6 x 2.9 x 2.45mm |
| Test Current | 1mA |
| Width | 2.9mm |
| Height | 2.45mm |
| Automotive Standard | AEC-Q101 |
| Length | 4.6mm |
| Maximum Reverse Leakage Current | 50µA |
