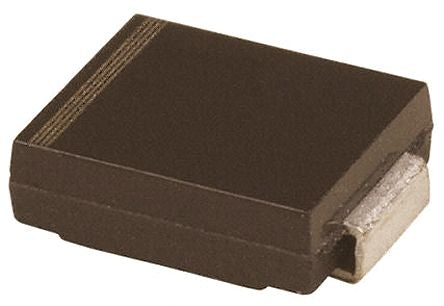

STMicroelectronics LNBTVS4-220S, Uni-Directional TVS Diode, 22.5kW, 2-Pin SMC [LNBTVS4-220S]; 829-2727
0₫
Mã kho: 8292727
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 35V |
| Minimum Breakdown Voltage | 22V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 20V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 334A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 7.15mm |
| Width | 6.25mm |
| Height | 2.45mm |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 7.15 x 6.25 x 2.45mm |
