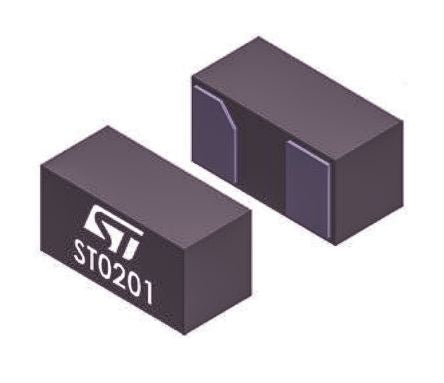

STMicroelectronics ESDZL5-1F4, Uni-Directional TVS Diode, 60W, 2-Pin 0201 [ESDZL5-1F4]; 163-9792
0₫
Mã kho: 1639792
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 10V |
| Mounting Type | Surface Mount |
| Package Type | 201 |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 60W |
| Maximum Peak Pulse Current | 7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 0.6 x 0.3 x 0.33mm |
| Length | 0.6mm |
| Height | 0.33mm |
| Width | 0.3mm |
| Maximum Reverse Leakage Current | 100nA |
| Capacitance | 9.5pF |
