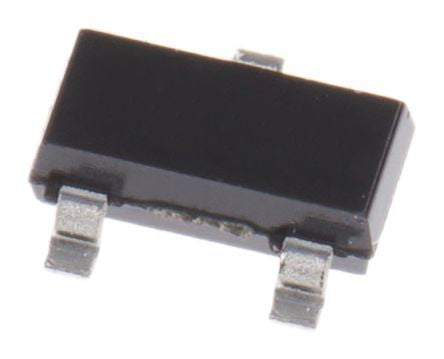

ESDCAN04-2BWY, TVS Diodes [ESDCAN04-2BWY]; 192-4255
0₫
Mã kho: 1924255
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 43V |
| Minimum Breakdown Voltage | 27.5V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Maximum Reverse Stand-off Voltage | 25.5V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 170W |
| Maximum Peak Pulse Current | 3.7A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Automotive Standard | AEC-Q101 |
| Length | 2.2mm |
| Height | 1mm |
| Capacitance | 330pF |
| Width | 1.35mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Maximum Reverse Leakage Current | 50nA |
